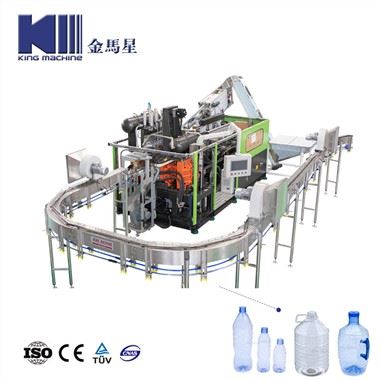

Mesin Peniup Botol Air Mineral Murni Pet Kecil Otomatis
Mesin blow moulding otomatis penuh cocok untuk memproduksi wadah dan botol plastik PET dalam segala bentuk. Ini banyak digunakan untuk memproduksi botol berkarbonasi, air mineral, kosmetik botol minyak botol pestisida, botol mulut lebar-dan botol isi panas dll.
perkenalan produk
Mesin Peniup Botol Air Mineral Murni Pet Kecil Otomatis
Linear Automatic PET Blow Molding Machine is an economical model self-developed by LiDLi technical team, with features economic, fast, convenient. It can make different kinds of PET packages for water, edible oil, juice, wine, cosmetics, etc. It can make max. 2Litre bottle.
1. Upgrade to Servo Motor Drive:
a.Sistem Pemberian Makan Sebelumnya: servo motor partitioning effectively solves the problem of wear and deformation.
b.Sistem Transfer Sebelumnya: PET preform horizontal movements are driven by Servo Motor. Make preforms 4pcs as one unit, overall simplified stepping motion, achieve high-speed positioning and smooth motion. to complete one step cycle, the Servo Motor drive gear rotates only one-third of a turn. Speed of preform moving is 2 times of Cylinder Driven way.
2. Cetakan diperbaiki dengan desain laci, penggantian cetakan dapat dengan mudah dilakukan dalam waktu setengah-jam.
3. Efficiency Constant Temperature Oven:
a.Use the most advanced high-frequency Infrared Lamp, increase heating efficiency 30 percent -50 percent .
b.Each layer of the lamp is separately controlled, with an assistant ruler on a machine.
c.Intelligent temperature control system.
Temperature detector feedback to PLC automatically, PLC makes an accurate judgment and then controls circulation air in the oven. It leads to constant temperature in Oven, free from voltage fluctuations and ambient temperature. It works when large ambient temperature difference (-2845ºC).
d.Preform self-rotation System, ensure every side of every preform is heated evenly, which ensures the quality of the blown bottle. (thickness up to 4.5mm)
e.Neck Cooling in Oven.
Preform Necks are cooled by recycling water, which avoids neck deformation
Konfigurasi untuk Mesin Blow Moulding
| Tidak. | Keterangan | Merek Asal |
| 1 | PLC | Mitsubishi (Jepang) |
| 2 | Panel Operasi | Schneider (France) |
| 3 | Silinder | TAIWAN |
| 4 | Motor servo | XINJIE (CHINA) |
| Pengurang kecepatan | XINJIE (France) | |
| 5 | Katup | TAIWAN |
| 6 | Saklar fotolistrik | Omron (Jepang) |
| 7 | Kontaktor AC, Relay Termal | Schneider (Prancis) |
Spesifikasi Mesin Blow Moulding
| item | Satuan | Model | |
| Mold Spec. | Menjepit stroke | mm | 125 |
| Peregangan stroke | mm | 240 | |
| Stroke bawah | mm | 30 | |
| lapangan rongga | mm | 114.3 | |
| Jumlah rongga | gigi berlubang | 6 | |
| Spesifikasi Kontainer | Maks. volume, ktr. | L | 2 |
| Diameter leher | mm | 1838 | |
| Diameter maks., ctr. | mm | 114.3 | |
| Maks. tinggi, ct. | mm | 320 | |
| Spesifikasi Daya | Kekuatan total | kW | 130 |
| Kekuatan Pemanasan | kW | 120 | |
| Spesifikasi Kompresor Udara. | Tekanan tiup | Kg/cm2 | 28-35 |
| Konsumsi udara{}tekanan tinggi | m3/ menit | 3.6 | |
| Spesifikasi Pendingin Air. | Tekanan operasi | Kg/cm2 | Lebih besar dari atau sama dengan 6 |
| Kisaran suhu | ºC | 520 | |
| Kapasitas pendinginan | kkal/jam | 15000 | |
| Laju aliran | m3/h | 4.1 | |
| Spesifikasi Pendingin Air | Tekanan operasi | Kg/cm2 | Lebih besar dari atau sama dengan 4 |
| Kisaran suhu | ºC | Kurang dari atau sama dengan 30 | |
| Laju aliran | m3/h | 4.8 | |
| Spek Mesin Utama. | Ukuran (LWH) | mm | 520017902110 |
| Bobot | kg | 7500 | |
| SN. | Keterangan | Spesifikasi | jumlah | Satuan | Catatan |
| 1 | kunci pas heksagonal | φ14 | 1 | bagian | |
| 2 | kunci pas | 1 | bagian | ||
| 3 | Monkey Wrench | Φ 50 | 1 | bagian | |
| 4 | Cross Screwdriver | 1 | bagian | ||
| 5 | Obeng Berlubang | 1 | bagian | ||
| 6 | Obeng Berlubang | 3MM | 2 | bagian | |
| 7 | Kunci pas kombinasi | 8 | bagian | ||
| 8 | Paket alat | 1 | bagian | ||
| 9 | Konektor Cepat (Tidak dapat-disesuaikan) | Φ6-M5 | 10 | bagian | |
| φ10-1/2 | 2 | bagian | |||
| Φ8-1/4 | 6 | bagian | |||
| Φ10-1/4 | 6 | bagian | |||
| φ16-1/2 | 6 | bagian | |||
| 10 | P{}persimpangan | φ6 | 6 | bagian | |
| φ8 | 2 | bagian | |||
| φ8 | 4 | bagian | |||
| 11 | Konektor Cepat ( lurus ) | Φ8-Φ6 | 6 | bagian | |
| 13 | Elbow Connector (Adjustable ) | Φ8-1/8 | 10 | bagian | |
| Φ8-1/4 | 4 | bagian | |||
| (Φ6-M5) | 6 | bagian | |||
| 14 | Elbow Connector (Non-Adjustable ) | Φ10-3/8 | 2 | bagian | |
| Φ10-1/4 | 6 | bagian | |||
| Φ16-1/2 | 4 | bagian | |||
| 15 | Pipa PU | φ62 meter | 1 | bagian | |
| φ86 meter | 1 | bagian | |||
| φ162 meter | 1 | bagian | |||
| φ104 meter | 1 | bagian | |||
| 16 | Bagian penyegelan | 4 | bagian | ||
| 17 | Lampu Panas | 20 | bagian | ||
| 18 | (Silinder) sakelar magnet | 3 | bagian | ||
| 19 | Saklar optoelektronik | 4 | bagian | ||
| 20 | Sakelar pendekatan | 4 | bagian | ||
| 21 | Sakelar Kedekatan Servo | 4 | bagian | ||
| 22 | Supercharge screw (with O ring) | 4 | bagian | ||
| 23 | Pipa bertekanan tinggi-(1 inci 3 Meter / berisi dua sambungan-tekanan tinggi) | 2 | bagian | ||
| 24 | Bagian penyegelan supercharge | 2 | bagian | ||
| 25 | Karet penyangga batang Peregangan | 2 | bagian | ||
| 26 | Karet penyangga batang Peregangan | 2 | bagian | ||
| 27 | tautan revolusi | 6 | mengatur | ||
| 28 | Lakukan pemegang | 6 | bagian | ||
| 29 | Φ8 Clamp spring (Outside) | 100 | bagian | ||
| 30 | Pin rantai | 12 | bagian | ||
| 31 | Pegas penjepit pemegang bentuk awal (Dalam) | 12 | bagian | ||
| 32 | Penggenggam | 4 | pasangan | ||
| 33 | Machine feet Φ165 | 8 | bagian | ||
| 34 | Peralatan | 1 | MENGATUR | ||
